Actuators for lens driving

Surveillance applications in the industrial, security, and aerospace fields frequently use camera lenses with automated optics control. Precision motors are often used to control the zoom, focus, and iris functions of the optics system to create a clear image of a moving target. Automated optics control is most common where constant adjustment is required for long periods of time, or hands-on human operation is not possible due to location. The high efficiency, lightweight package, and broad operating temperature range of -40℃ to 85℃ make wanzhida’s motors ideal for these applications that are often mobile and subjected to challenging elements.

Product Recommendations

CM1320 actuators for lens driving
Product Details

Application :
Model : CM1320
Voltage (V) : 6v
Speed (rpm) : 54rpm
Electric : 0.138A
Rated torque : 78mN.m

CM1025 Motor for driving iris mechanisms
Product Details

Application :
Model : CM1025
Voltage (V) : 12v
Speed (rpm) : 54rpm
Electric : 0.093A
Rated torque : 98mN.m

WZD-CM1017 Motor for driving focal-plane shutters
Product Details

Application :
Model : CM1017
Voltage (V) : 12v
Speed (rpm) : 55rpm
Electric : 0.042A
Rated torque : 43mN.m

Motor advantage

●High Efficiency:‌ Energy-saving and highly efficient, ultra-low power consumption.
●High Responsiveness:‌ Low rotor inertia for rapid response.
●High Torque:‌ Optimized electromagnetic design delivers higher torque.
●‌High Reliability:‌ Utilizes high-reliability components, brushless design for long lifespan,
reliably operates even under extreme conditions.
●High efficiency, low power consumption, low weight and volume
●‌Low Temperature Rise:‌ Optimized thermal resistance design enhances
stability of customer equipment.
●low moment of inertia
●‌Low Vibration:‌ Cogging-free operation ensures extremely smooth running,
facilitating precise control.
●Low Noise:‌ Exceptionally quiet operation for undisturbed environments.
●Compact Size:‌ Space-saving, lightweight design conserves installation space.

Customized solution

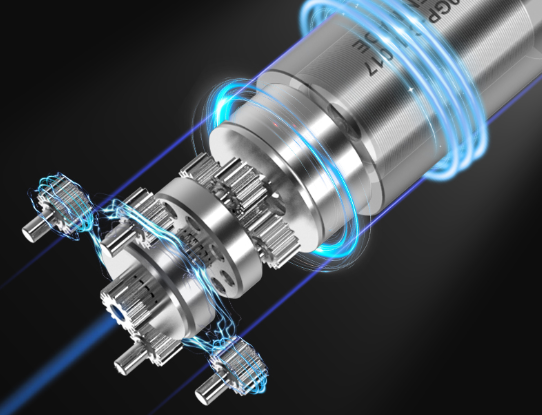

●Gearbox provides high torque and finer resolution
●Encoders can get position feedback
●Custom shafts to suit application mounting requirements
