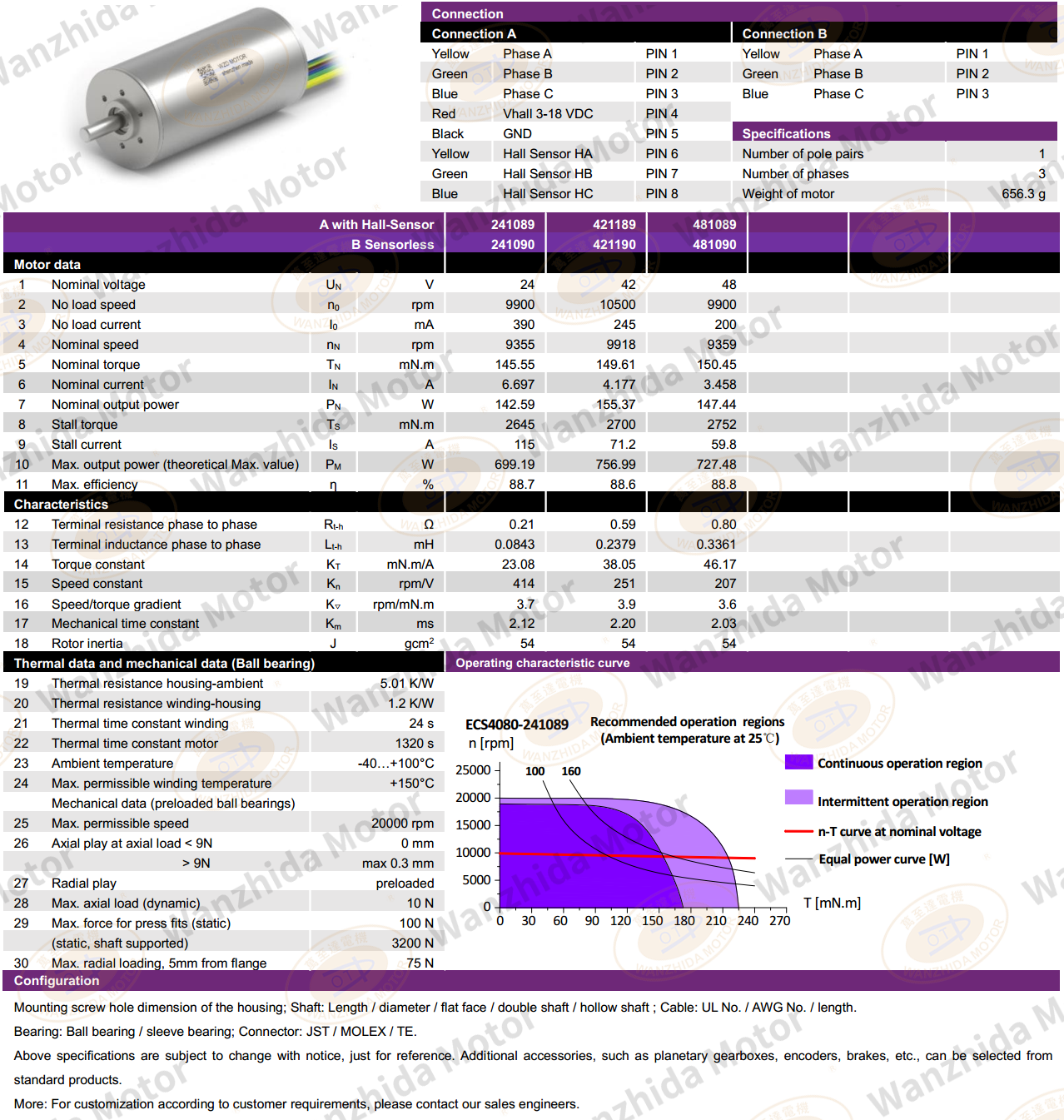

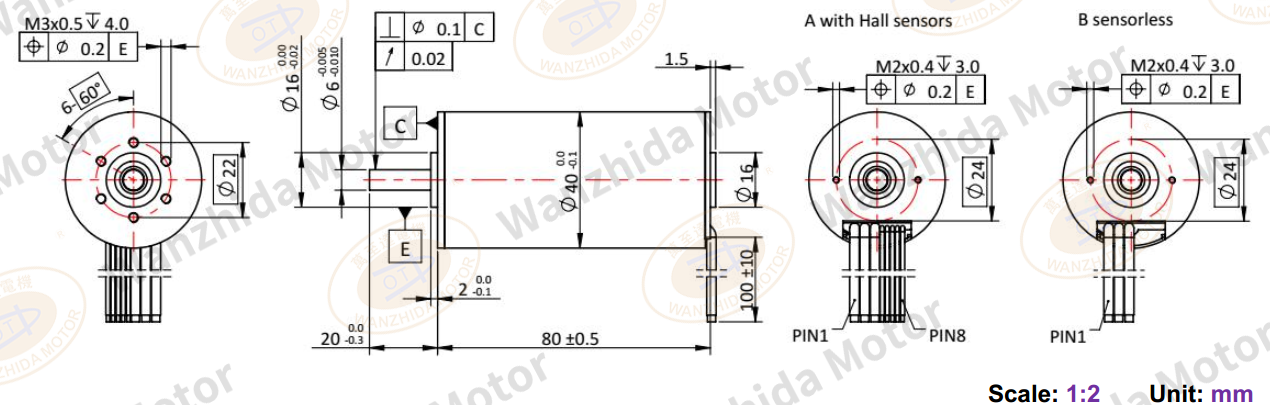

ECS 4080 Electronical Commutation Slotless DC Motor

Application : Electrical tools,Medical,Robot
Model : ECS 4080
Voltage (V) : 24V
Speed (rpm) : 9900rpm
Electric : 6.697A
Rated torque : 145.55mN.m

We can easily change the shaft,flange structure and connectors to meet different applocation needs.If you are further adjusting the output components,bearings,and windings,you can contact our sales engineers and we will provide you with a customized solution.
ECS4080 Coreless motor_Electronical Commutation Slotless DC Motor-wanzhida motor
ECS4080 Coreless motor_Electronical Commutation Slotless DC Motor-wanzhida motor

Product application

Electrical tools

With the development of motor and electronic technology, DC motors have been widely used in lawn mowers, electric drills, electric saws, lawn mowers, and electric wrenches below 36V.

Medical

Motor drives are used in numerous medical applications. The motor operates reliably and has the best quality in high-precision equipment such as active implants, insulin pumps, surgical robots, electric tools, ventilators, ventilators, and prostheses.

Robot

DC motors are the core hardware of robots, and they are needed to drive areas of activity, such as wheel movement, arm movement, head movement, finger movement, etc.
