ECS 0824 Φ08 Electronical Commutation Slotless DC Motor

Application : Medical
Model : ECS 0824
Voltage (V) : 3.0V
Speed (rpm) : 16000rpm
Electric : 0.521A
Rated torque : 0.8mN.m

Inquire Now

wzp@wanzhida.cn

We can easily change the shaft,flange structure and connectors to meet different applocation needs.If you are further adjusting the output components,bearings,and windings,you can contact our sales engineers and we will provide you with a customized solution.

Product Mix

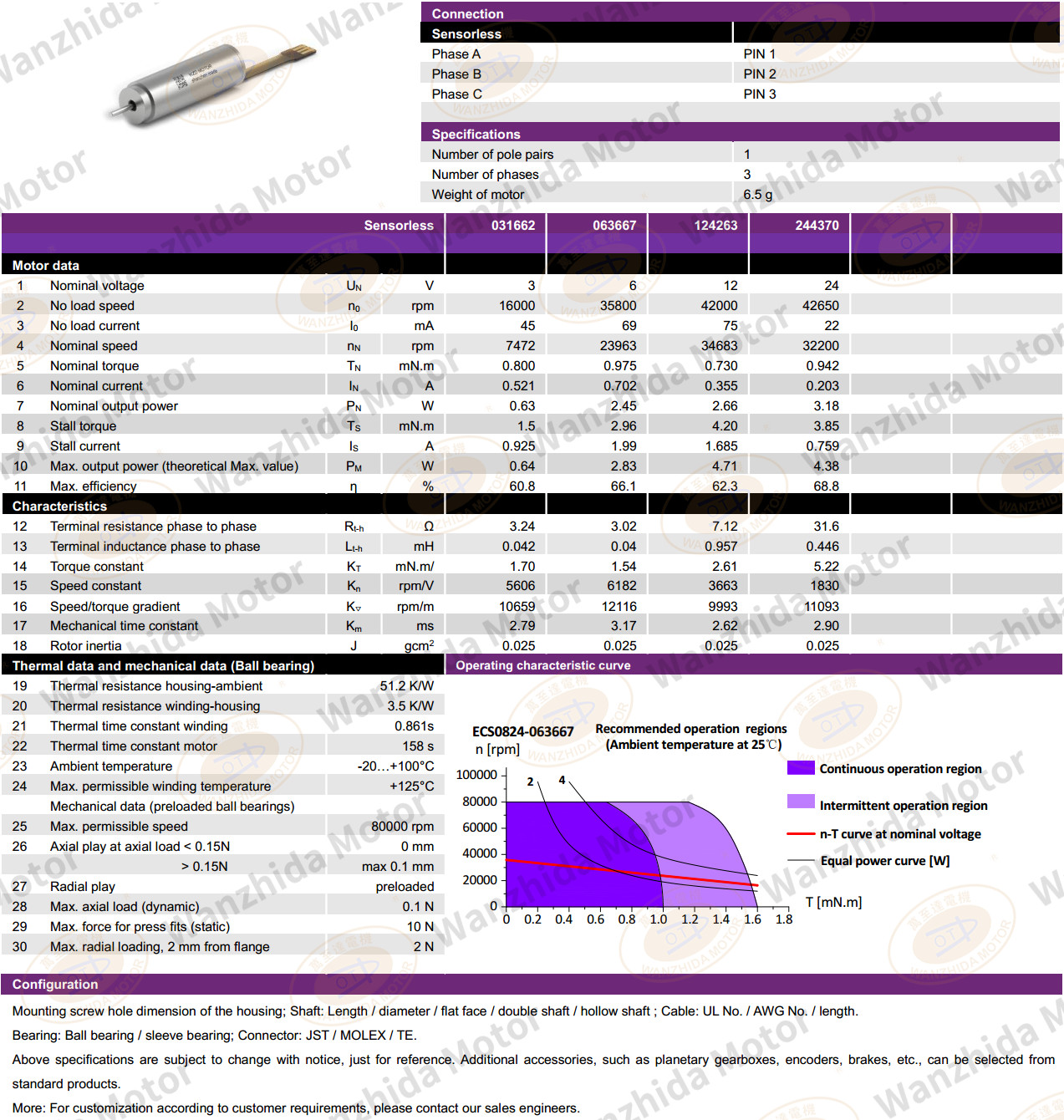

Product parameters

Product application

File download

Popular for micromotors

8mm Electronical Commutation Slotless DC Motor-wanzhida motor

Product application

Medical

Motor drives are used in numerous medical applications. The motor operates reliably and has the best quality in high-precision equipment such as active implants, insulin pumps, surgical robots, electric tools, ventilators, ventilators, and prostheses.
