EM10445 Brushless DC Motor

Application : Pan-tilt,Robot
Model : EM10445
Voltage (V) : 48V
Speed (rpm) : 4700rpm
Electric : 27.8A
Rated torque : 23.5kg.cm

Inquire Now

wzp@wanzhida.cn

We can easily change the shaft,flange structure and connectors to meet different applocation needs.If you are further adjusting the output components,bearings,and windings,you can contact our sales engineers and we will provide you with a customized solution.

Product Mix

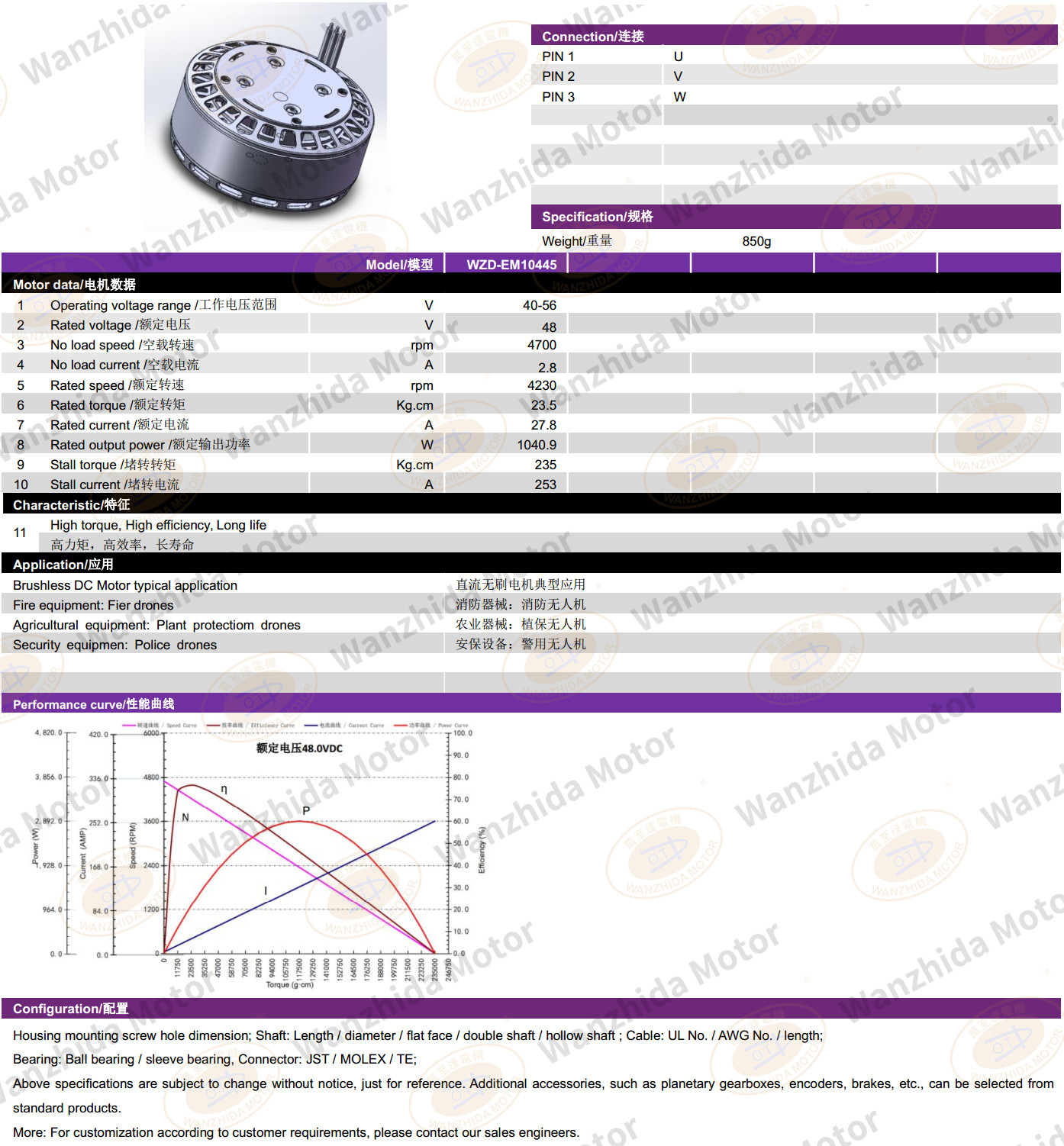

Product parameters

Product application

File download

Popular for micromotors

EM10445 Brushless DC Motor-wanzhida motor

Product application

Pan-tilt

The pan tilt motor is widely used in the fields of aerial photography, unmanned aerial vehicles, and security cameras, with electric rotary shooting driving equipment.

Robot

DC motors are the core hardware of robots, and they are needed to drive areas of activity, such as wheel movement, arm movement, head movement, finger movement, etc.
