EM 2332 Brushless DC Motor-wanzhida motor

Home Products PRODUCT EM 2332 Brushless DC Motor

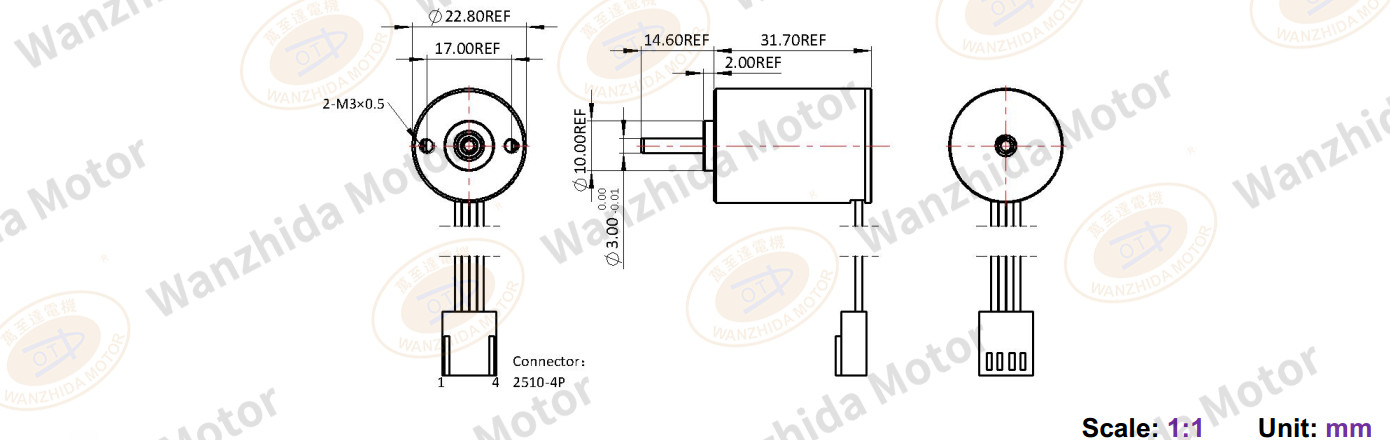

EM 2332 Brushless DC Motor

Application : Personal care
Model : EM 2332
Voltage (V) : 12V
Speed (rpm) : 11700rpm
Electric : 0.75A
Rated torque : 70g.cm

Inquire Now

wzp@wanzhida.cn

We can easily change the shaft,flange structure and connectors to meet different applocation needs.If you are further adjusting the output components,bearings,and windings,you can contact our sales engineers and we will provide you with a customized solution.

Product Mix

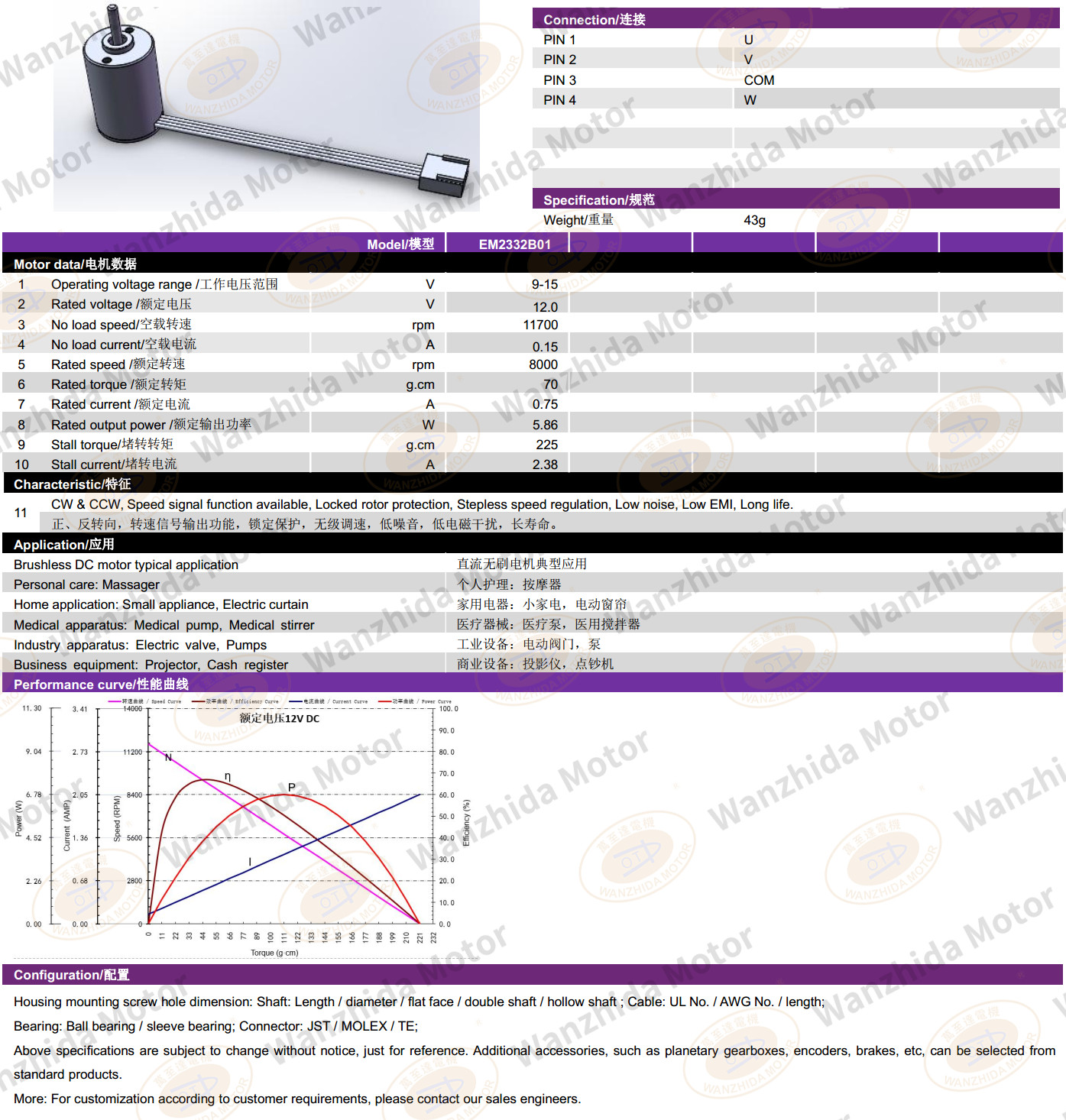

Product parameters

Product application

File download

Popular for micromotors

EM 2332 Brushless DC Motor-wanzhida motor

Product application

Personal care

The coreless motor eliminates the electrical energy loss caused by eddy current formation in the iron core, and its weight and rotational inertia are small, thereby reducing the mechanical energy loss of the rotor itself. Therefore, the coreless motor has become the most commonly used motor in personal care.
