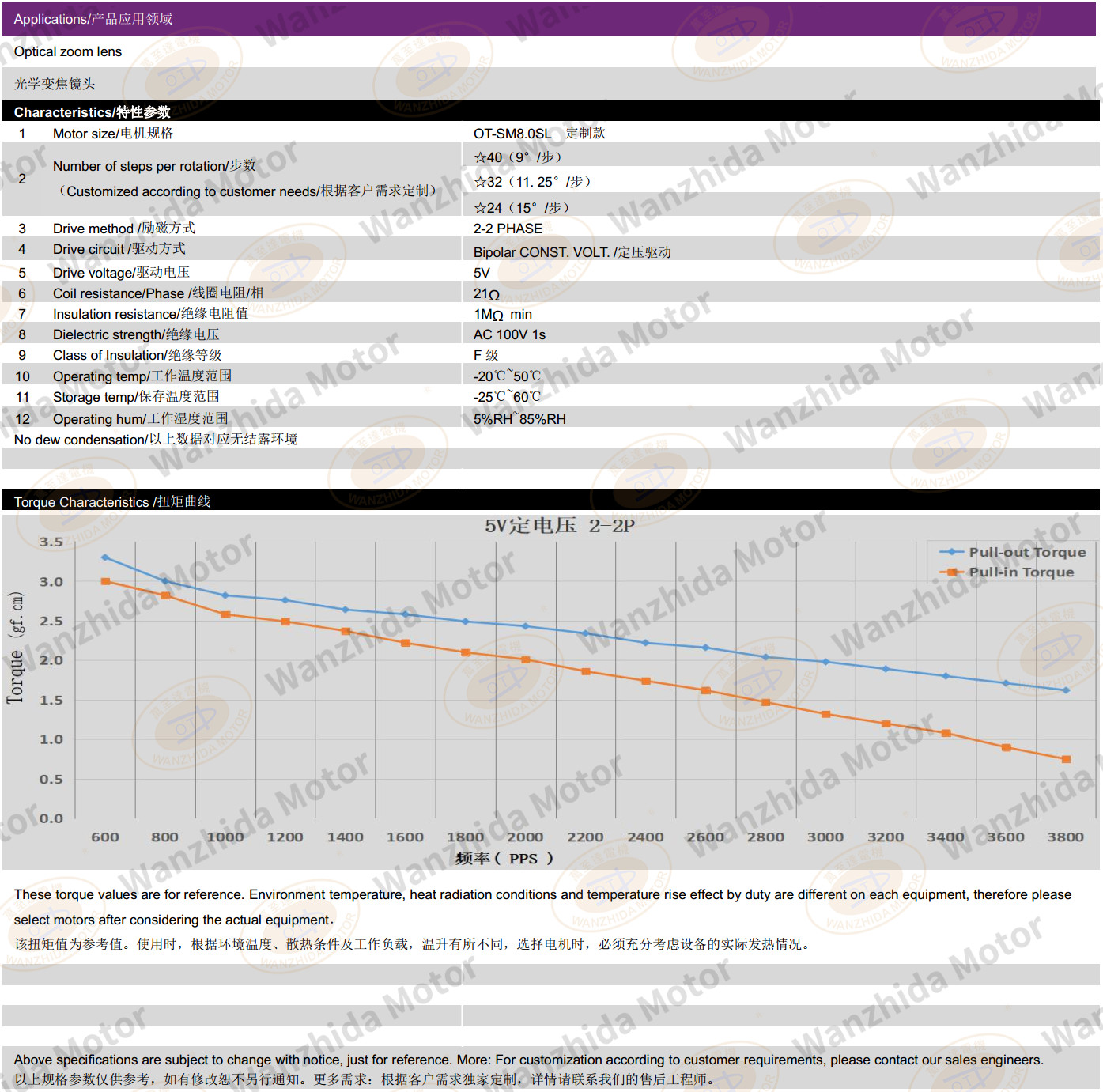

OT-SM8.0SL Permanent magnet stepper motor

Application : LENS,CCTV,Medical,ICR
Model : OT-SM8.0SL
Voltage (V) : 5.0V
Speed (rpm) :
Electric :
Rated torque :

We can easily change the shaft,flange structure and connectors to meet different applocation needs.If you are further adjusting the output components,bearings,and windings,you can contact our sales engineers and we will provide you with a customized solution.

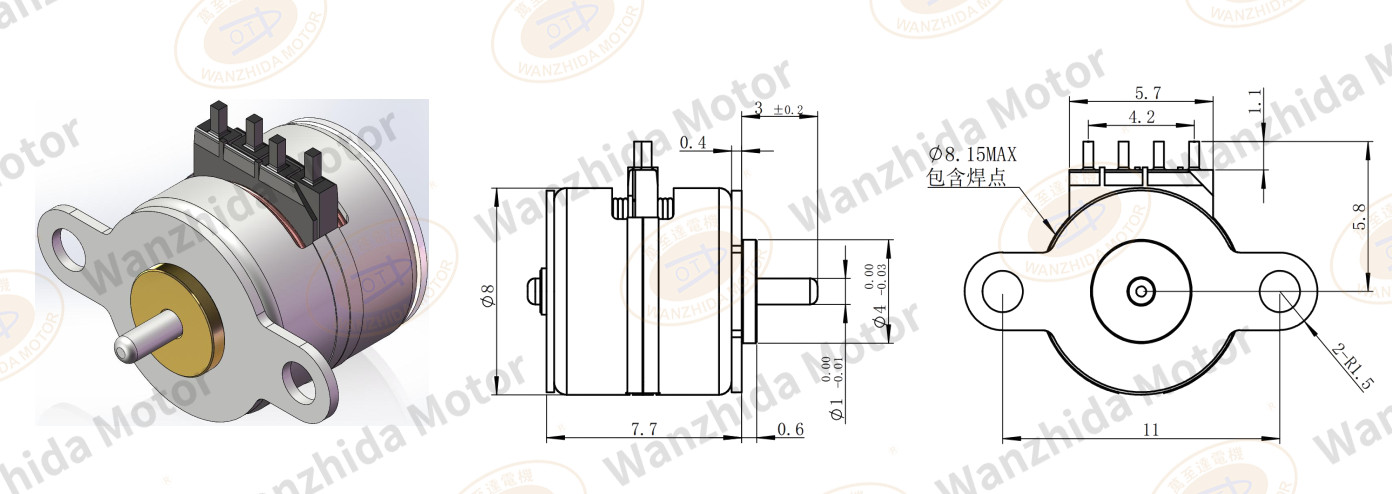

8mm mini Permanent magnet stepper motor-wanzhida motor
8mm mini Permanent magnet stepper motor-wanzhida motor

Product application

LENS

Using stepper motors and software to accurately control the lens aperture. This technology overcomes the shortcomings of conventional automatic aperture lenses and achieves optimal image effects by improving contrast, clarity, resolution, and depth of field.

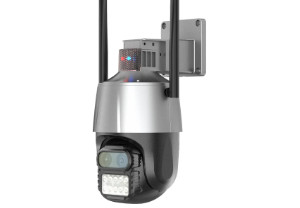

CCTV

By using stepper motor subdivision technology to reduce the stepper motor step angle, the depth of field resolution of the autofocus system under high magnification lenses can be improved.

Medical

Motor drives are used in numerous medical applications. The motor operates reliably and has the best quality in high-precision equipment such as active implants, insulin pumps, surgical robots, electric tools, ventilators, ventilators, and prostheses.

ICR

During the day, the IR-CUT dual filter switch operates the infrared cut-off filter to restore true color. At night, the infrared cut-off/absorption filter automatically moves away and the full transmittance spectral filter begins to work, allowing the CCD to fully utilize all light, thereby improving low light performance.
