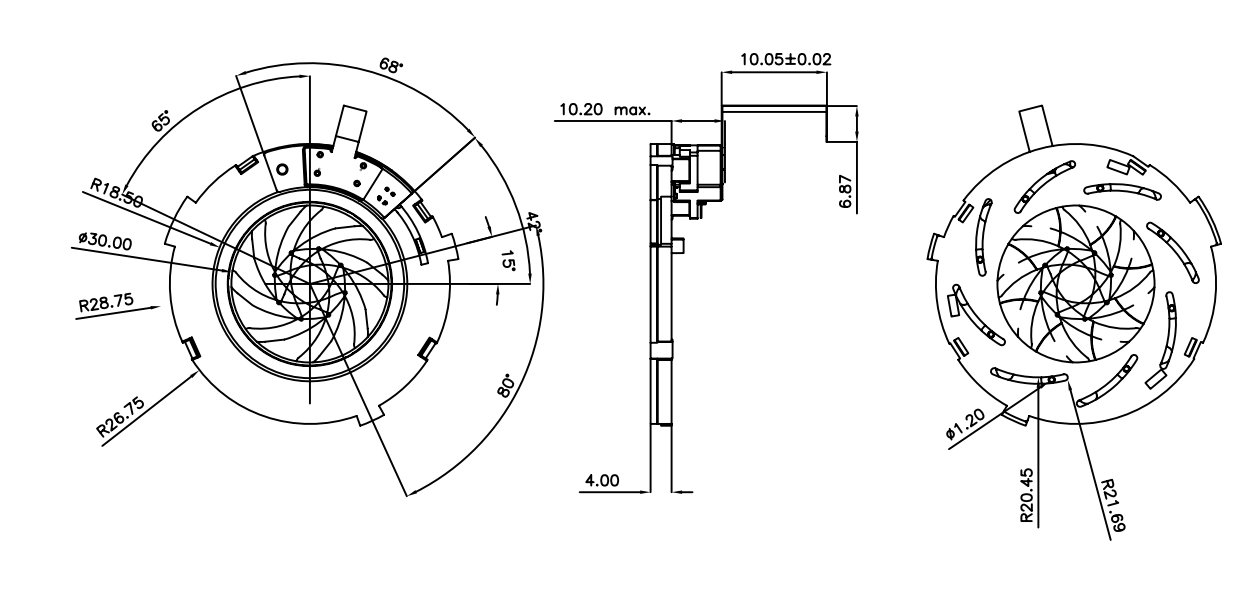

OT-IRIS30-002 aperture stepper motor

Application : LENS,CCTV
Model : OT-IRIS30-002
Voltage (V) :
Speed (rpm) :
Electric :
Rated torque :

Inquire Now

wzp@wanzhida.cn

We can easily change the shaft,flange structure and connectors to meet different applocation needs.If you are further adjusting the output components,bearings,and windings,you can contact our sales engineers and we will provide you with a customized solution.

Product Mix

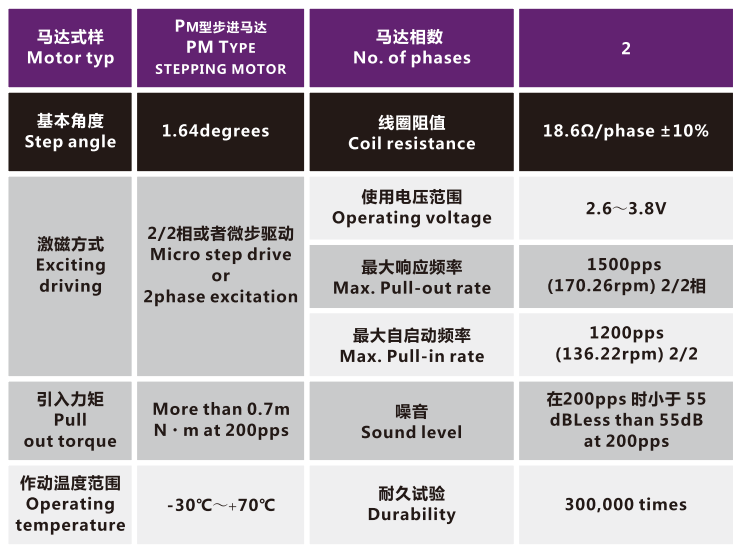

Product parameters

Product application

File download

Popular for micromotors

Product application

LENS

Using stepper motors and software to accurately control the lens aperture. This technology overcomes the shortcomings of conventional automatic aperture lenses and achieves optimal image effects by improving contrast, clarity, resolution, and depth of field.

CCTV

By using stepper motor subdivision technology to reduce the stepper motor step angle, the depth of field resolution of the autofocus system under high magnification lenses can be improved.
