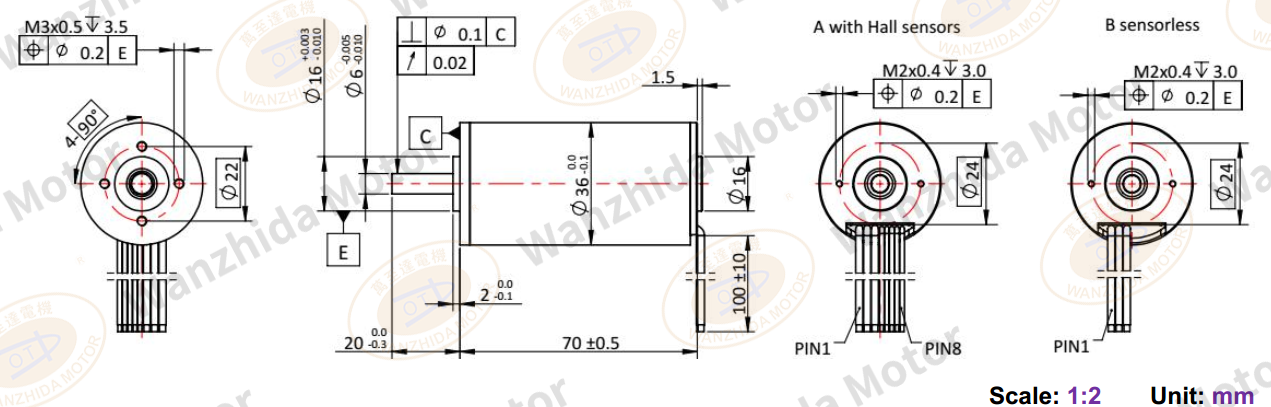

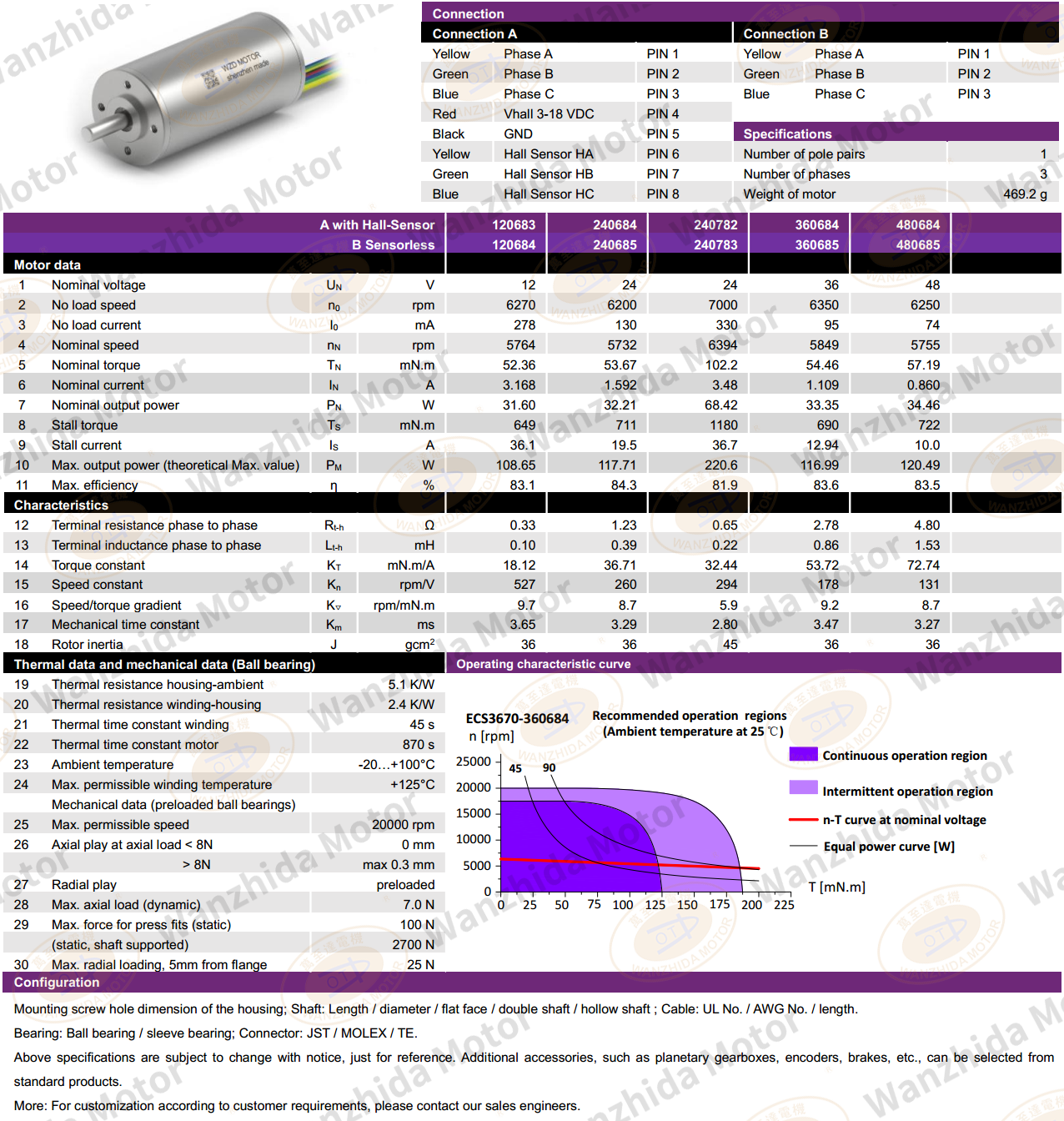

ECS 3670 Electronical Commutation Slotless DC Motor

Application : Other,Electrical tools,Medical,Robot,UAV
Model : ECS 3670
Voltage (V) : 12V
Speed (rpm) : 6270rpm
Electric : 3.168A
Rated torque : 52.36mN.m

We can easily change the shaft,flange structure and connectors to meet different applocation needs.If you are further adjusting the output components,bearings,and windings,you can contact our sales engineers and we will provide you with a customized solution.
36mmCoreless motor_Electronical Commutation Slotless DC Motor-wanzhida motor
36mmCoreless motor_Electronical Commutation Slotless DC Motor-wanzhida motor

Product application

Other

Hollow cup motor is used in automatic window system, air conditioning system, driving assistance system and seat adjustment

Electrical tools

With the development of motor and electronic technology, DC motors have been widely used in lawn mowers, electric drills, electric saws, lawn mowers, and electric wrenches below 36V.

Medical

Motor drives are used in numerous medical applications. The motor operates reliably and has the best quality in high-precision equipment such as active implants, insulin pumps, surgical robots, electric tools, ventilators, ventilators, and prostheses.

Robot

DC motors are the core hardware of robots, and they are needed to drive areas of activity, such as wheel movement, arm movement, head movement, finger movement, etc.

UAV

Brushless DC motors are very popular in model aircraft and drone applications, mainly due to the relationship between performance and weight, as well as the large range of structural size design. Brushless DC motors have made lighter drone models possible.
