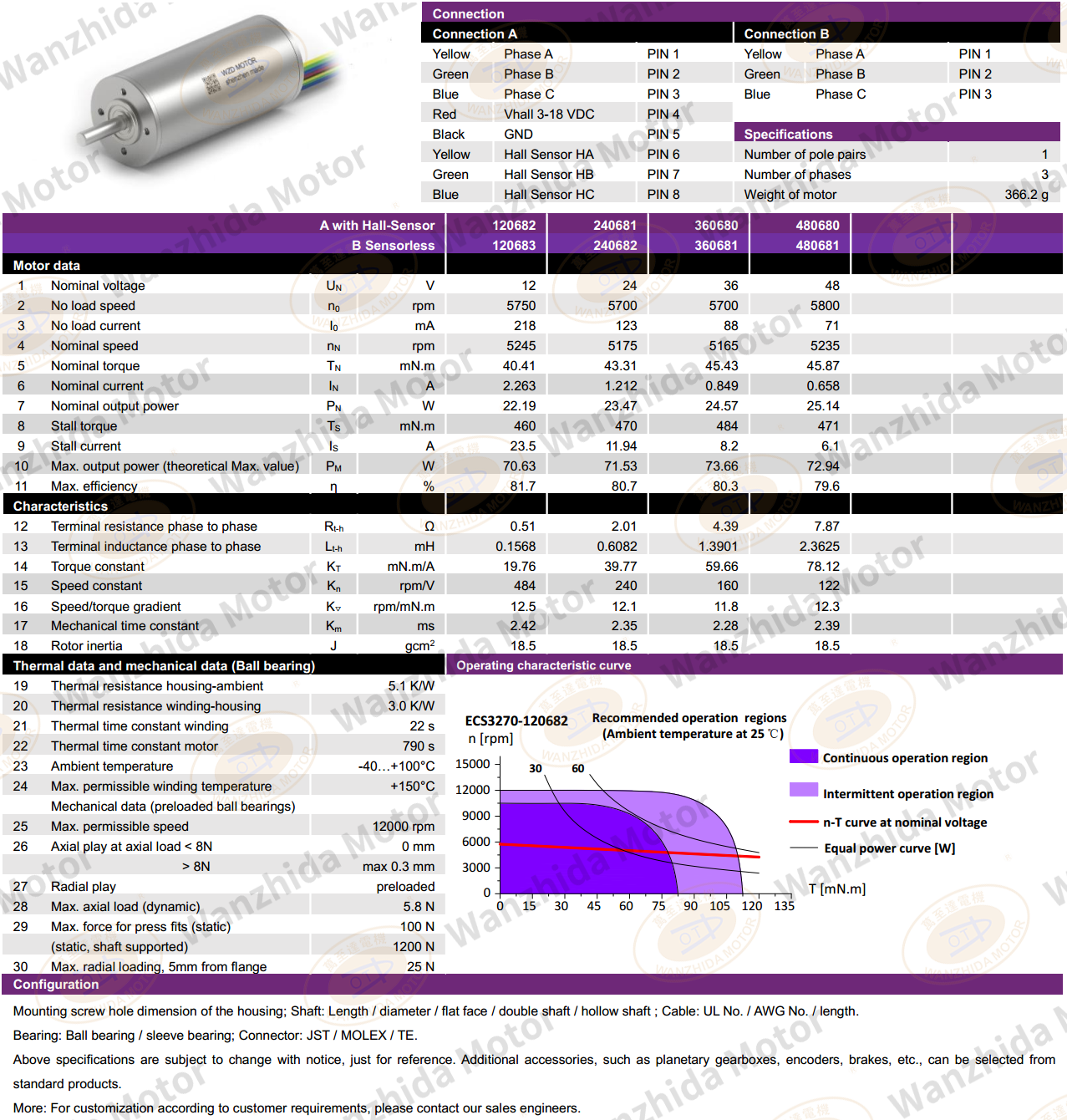

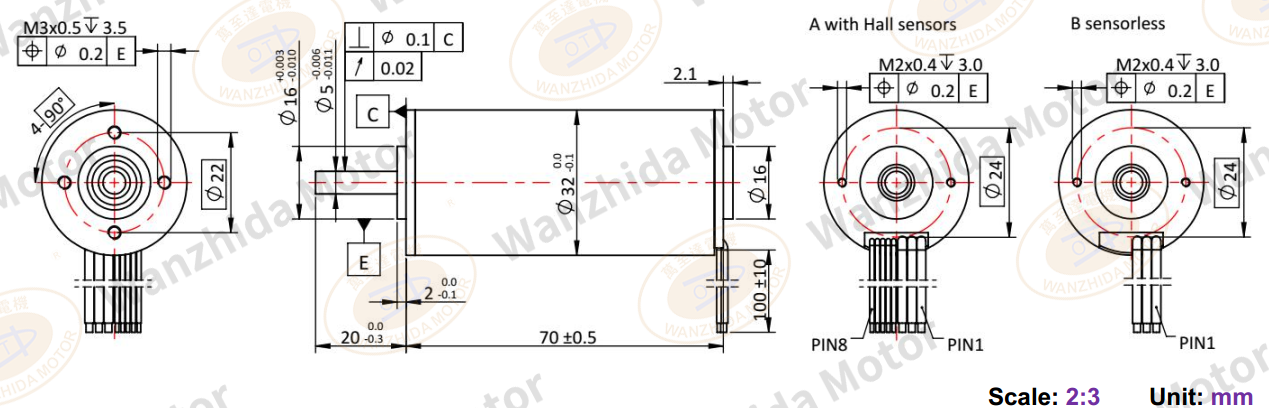

ECS 3270 Electronical Commutation Slotless DC Motor

Application : Electrical tools,Medical,Robot
Model : ECS 3270
Voltage (V) : 12V
Speed (rpm) : 5750rpm
Electric : 2.263A
Rated torque : 40.41mN.m

We can easily change the shaft,flange structure and connectors to meet different applocation needs.If you are further adjusting the output components,bearings,and windings,you can contact our sales engineers and we will provide you with a customized solution.
32mmCoreless motor_Electronical Commutation Slotless DC Motor-wanzhida motor
32mmCoreless motor_Electronical Commutation Slotless DC Motor-wanzhida motor

Product application

Electrical tools

With the development of motor and electronic technology, DC motors have been widely used in lawn mowers, electric drills, electric saws, lawn mowers, and electric wrenches below 36V.

Medical

Motor drives are used in numerous medical applications. The motor operates reliably and has the best quality in high-precision equipment such as active implants, insulin pumps, surgical robots, electric tools, ventilators, ventilators, and prostheses.

Robot

DC motors are the core hardware of robots, and they are needed to drive areas of activity, such as wheel movement, arm movement, head movement, finger movement, etc.
